Cooling System

radiatore water-pomp

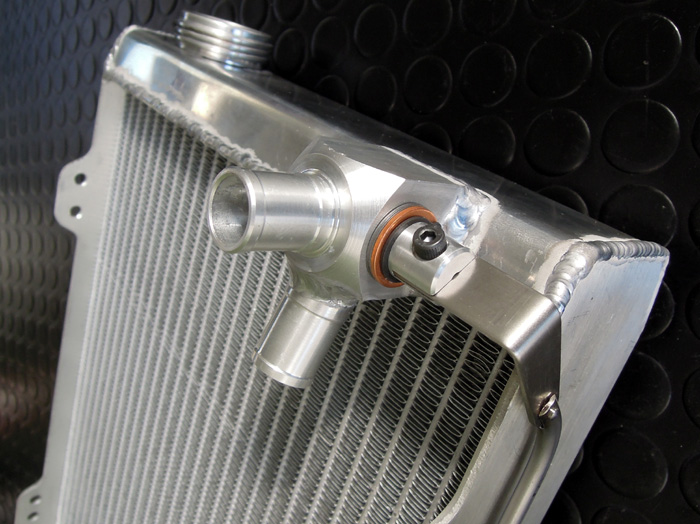

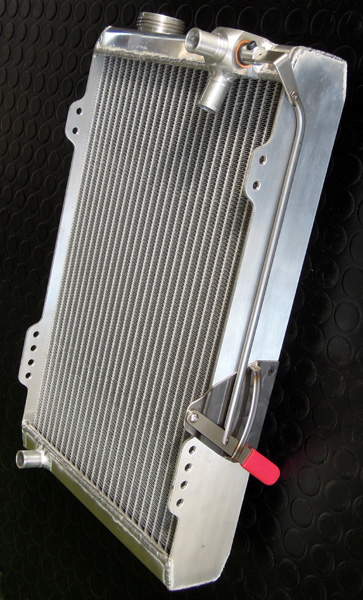

  • Large volume Tecno original radiator.

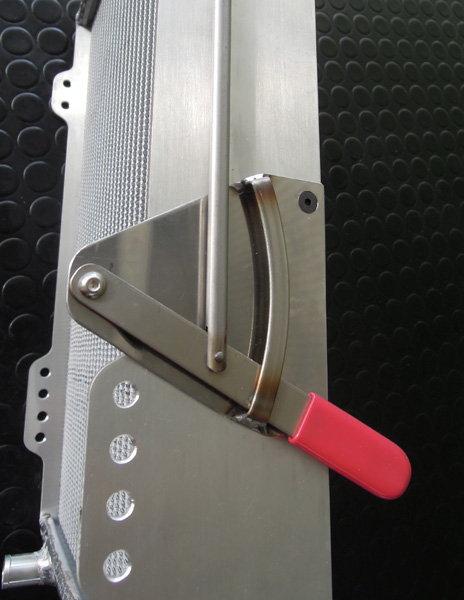

  • Integrated temperature control valve.
  • Not required shutter,thermostat and
    other device for temperature control.
  • Water flow dissected 3-stage

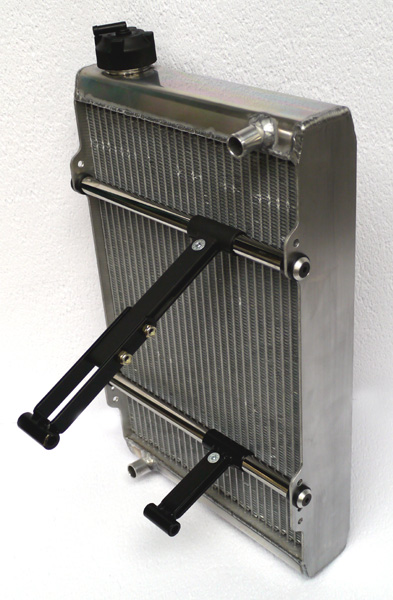

  • Include adjustable support stay.
  • Include 3way connector.
  • 3 sizes available.
  • Without control valve model available.
Width 245mm / 265mm / 285mm
Height 430mm (without tank cap)
Depth 65mm
Core size 240 / 260 / 280mm x 390mm x 40mm
mini_scout_60

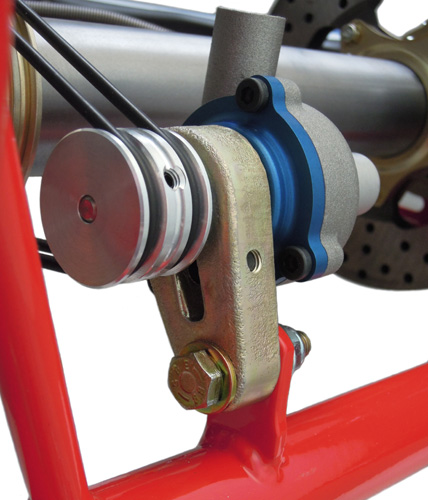

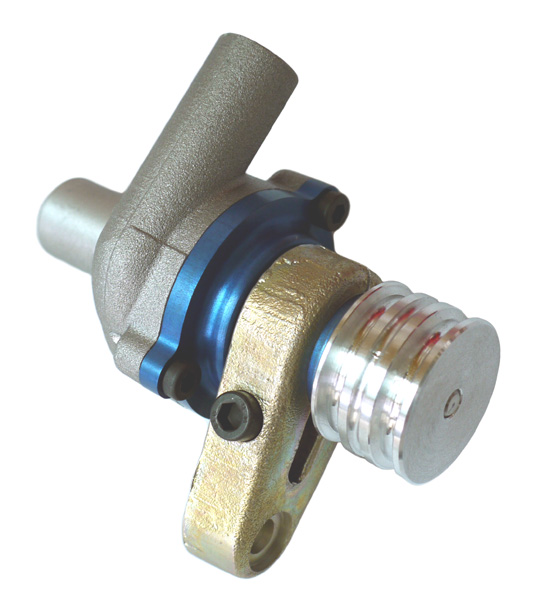

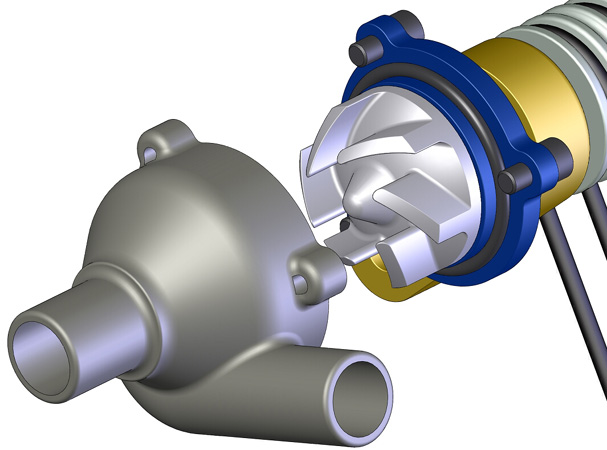

  • Centrifugal radial flow
  • Aluminium body
  • 2sealed cartridge bearings with stainless steel axle shaft
  • Lightweight magnesium drive pulley
  • Magnesium support stay
  • 2 belts drive
  • 3 sizes of drive belts available
Drive pulley diameter Ø80mm
Driven pulley diameter Ø35mm
Rear axle diameter Ø40mm / Ø50mm
Turbine diameter Ø38mm
