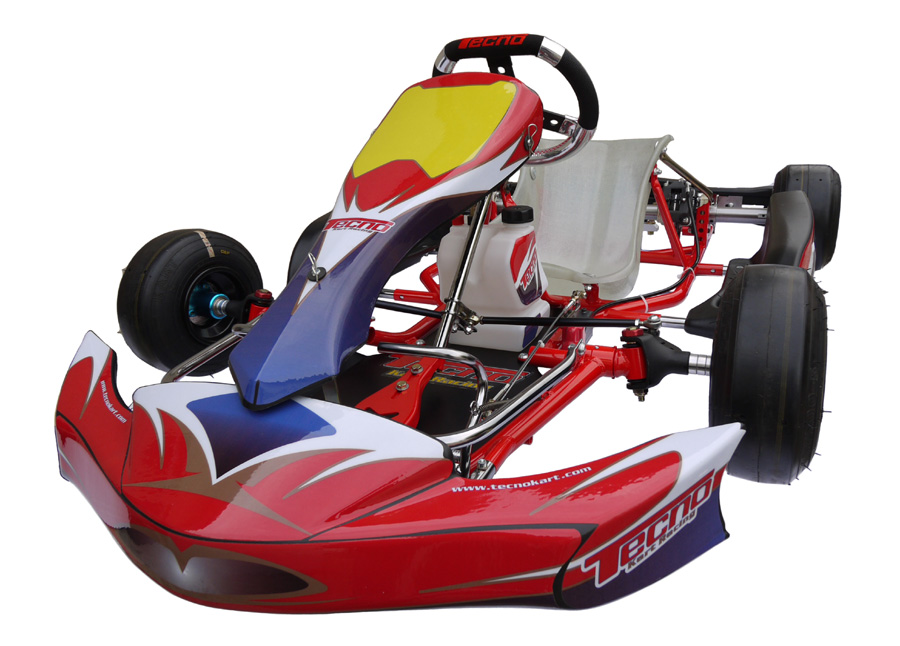

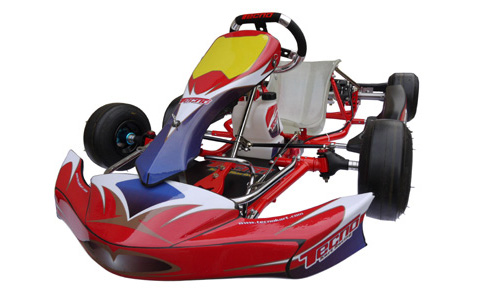

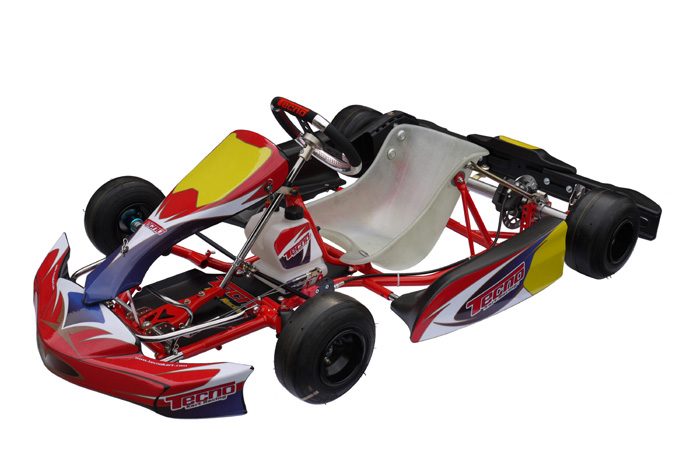

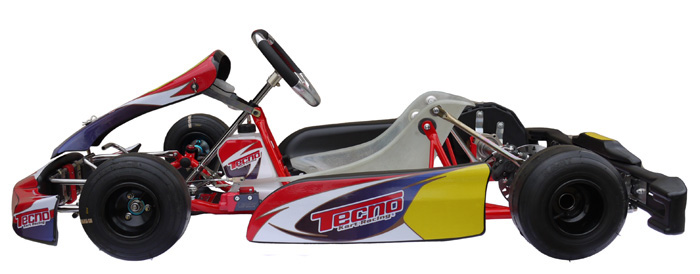

Mini MAX 101 HG
ROTAX Mini-MAX Specific model
- Perfect for kids with karting experience
- Age 10-13years old
Independent.Pivot.Tecnology
- Adjustable caster/camber system
- Range of caster adjustment 18º
- Range of camber adjustment 2º
Direction slider
- Quick toe in/out adjust system

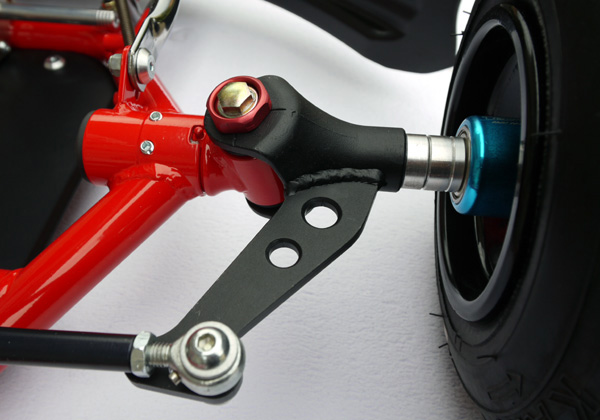

Fully adjustable stub axle
- Axle spindle, Ø17mm solid or Ø25mm hollowed
- 3 position Ackerman setting
- 3 position height adjust
- 10mm over sized king-pin and bearings

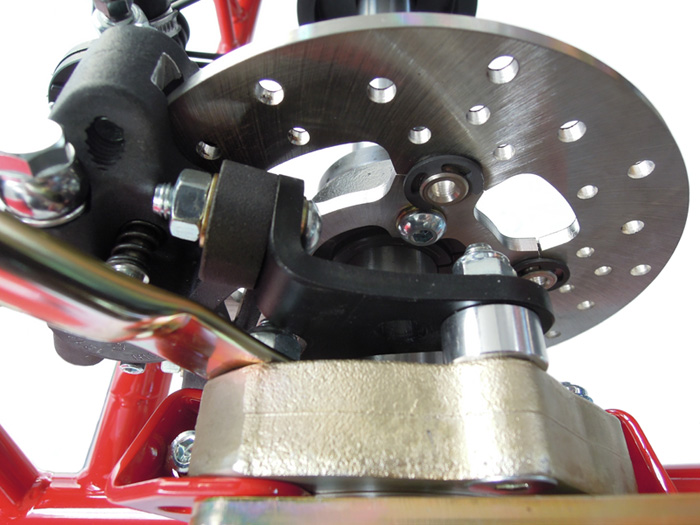

New mini hydraulic brake system
- Radial mount caliper
- Spring pad-return system
- Caliper mounted on the axle bearing carrier

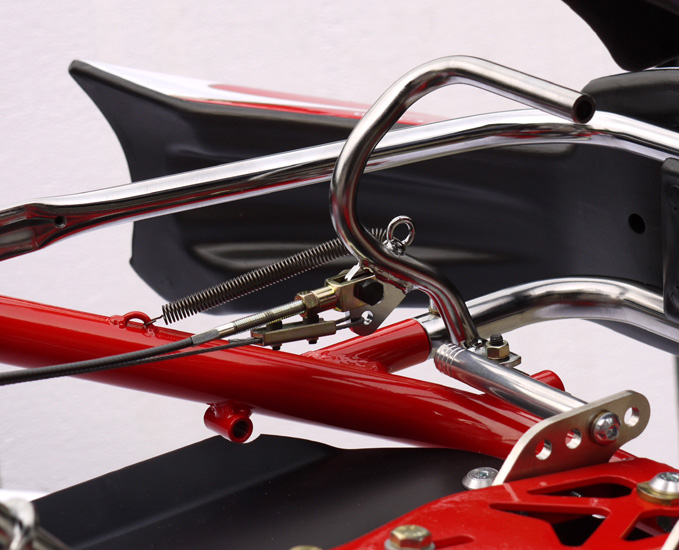

Footrest & extra pedal platform
- Adjustable independent design
- Extra pedal platform for the smaller drivers (option)
Following items not included
- Engine & engine accessories
- Tires

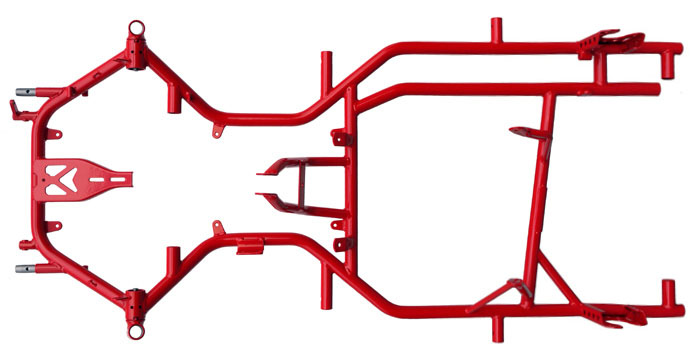

| Main tube | Ø28mm Cr-Mo special selected tube |
|---|---|
| Wheel base | 1010mm |

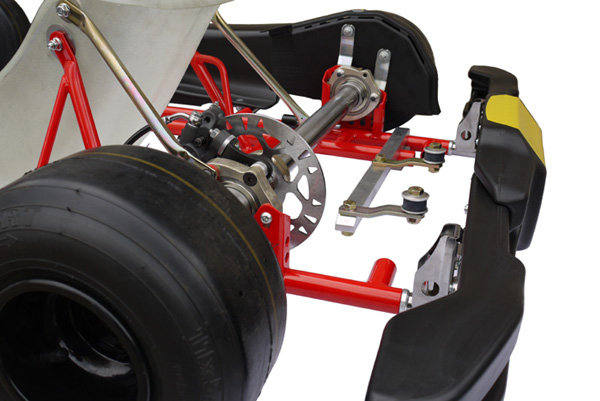

| Rear axle | Ø40 x 1020mm hollowed 2bearings height adjustable system CNC machined magnesium alloy bearing / sprocket carrier |
| Brake system | Rear - hydraulic foot brake system Ø170x5mm floating disc with CNC machined magnesium alloy carrier |
| Wheels | Front - 130mm magnesium alloy wheels Rear - 184mm magnesium alloy wheels |
| Hubs | Front - magnesium or aluminium alloy hubs Rear - Ø40 magnesium alloy hubs |
| Body-work | KG MK14 with TECNO sticker set, KG Mini TRIS rear spoiler |

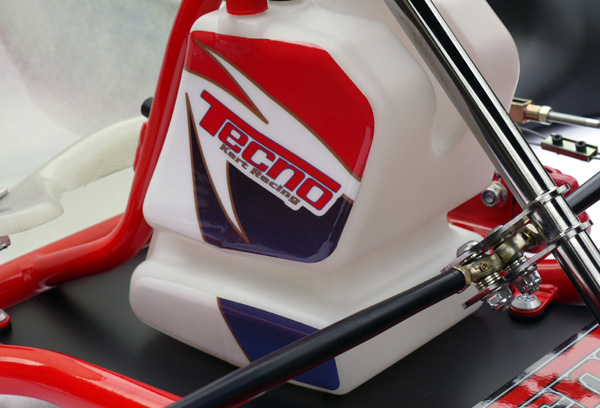

| Accessories | Detachable 3.5L fuel tank Angled steering boss Angled engine mount |
| Color | Frame /red |
Specifications subject to change without notice.
| Pedals | Extra pedal platform |
|---|---|
| Stub-axle spindle | Ø17mm solid / Ø25mm hollowed |
| Tie rod | 210mm / 239mm |
| Rear axle | soft / medium / hard |
| Front wheel hub | 60mm / 75mm / 90mm for Ø17mm spindle 70mm / 90mm for Ø25mm spindle |
| Rear wheel hub | Ø40mm x 50mm / 72mm / 97mm / 123mm |
| Frame color | blue /black / gray |
| Body-work color | red / black |
