new 2012 SS30/30 for KZ
CIK-FIA KF Specific model
- New Homologation CIK-FIA KZ 2012 - 2017
- Category - KZ2
New Frame layout
- All Ø30mm tubes
- Longer front overhang offer more foot space for tall boys
- Optimised seat stay position
Independent.Pivot.Tecnology
- Adjustable caster/camber system
- Range of caster adjustment 18º
- Range of camber adjustment 2º
Direction slider
- Quick toe in/out adjust system
Clutch lever
- "FlyFlap" free position hand lever
Asymmetric pedals & Split footrest
- Ø12mm accelerator, Ø14mm brake pedal for better power transfer
- Adjustable independent footrest
Following items not included
- Engine &engine accessories
- Engine mount
- Water pomp
- Tires
| Main tube | Ø30mm Cr-Mo special selected tube |
| Wheel base | 1040mm |

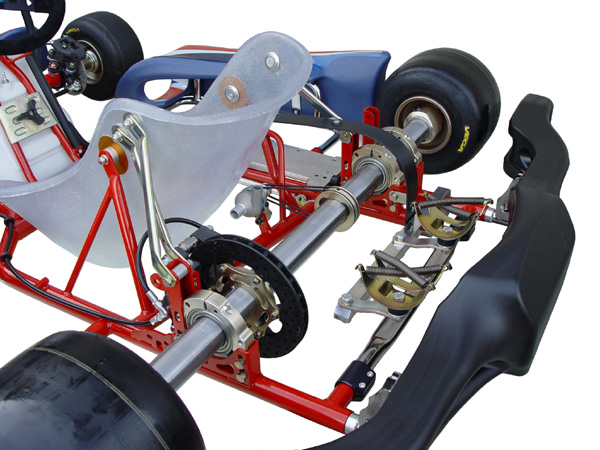

| Rear axle | Ø50 x 1020mm 3bearings with height adjustable system CNC machined magnesium alloy bearing carrier |

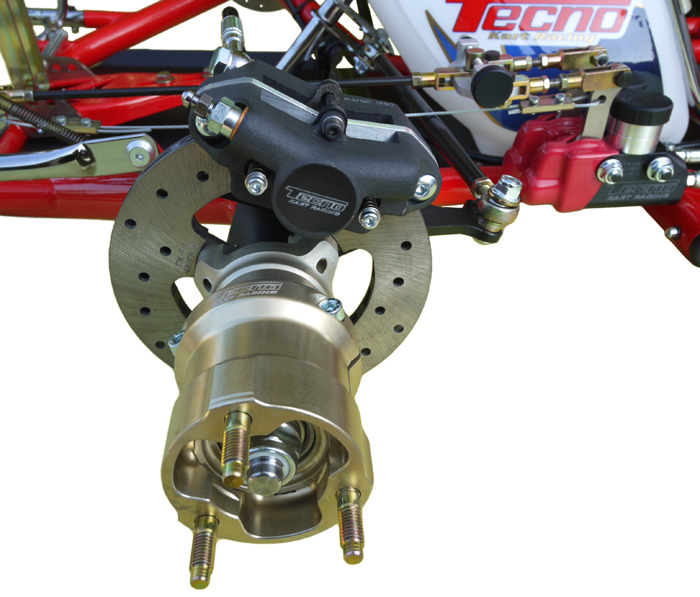

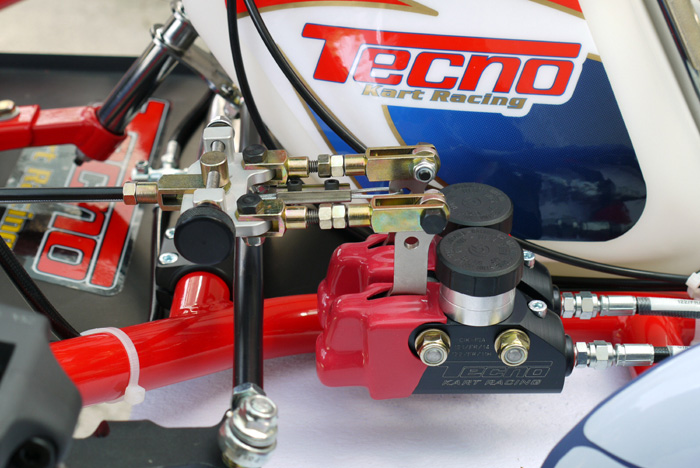

| Brake system | Front - CIK-FIA homologated FT-Z hydraulic foot brake system Ø150 x 10mm ventilated disc rotor Rear - CIK-FIA homologated FT-Z hydraulic foot brake system Ø196 x 15mm ventilated disc rotor |
| Wheels | Front- 130mm magnesium alloy wheels Rear- 212mm magnesium alloy wheels |
| Hubs | Front- Ø50 x 72mm magnesium alloy hubs Rear- Ø50 x 88mm magnesium alloy hubs |
| Body-work | TECNO JET II with sticker set |
| Accessories | Detachable 10L fuel tank Angled magnesium alloy steering boss D-type chamois leather steering wheel "FlyFlap" clutch lever "Split" foot rest KZ exhaust support |
Specifications subject to change without notice.
| Stub-axle spindle | Ø17mm solid / Ø25mm hollowed |
| Tie rod | 245mm / 249mm / 260mm / 272mm / 277mm / 286mm |
| Rear axle | extra soft/ soft / medium / hard |
| Front wheel | 130 back-space 43mm / 130 back-space 33mm ST50 130 wheel |
| Rear wheel | 212 back-space 63mm / 212 back-space 73mm ST50 212 wheel |
| Front wheel hub | ST50 72mm front hub |
| Rear wheel hub | Ø50mm x 68mm / 88mm / ST50 88mm / 108mm / 128mm |
| Frame color | red /black / gray |
| Body-work color | red |
