SS28 "PROMO"
Promo with 4stroke HONDA engine photo by Pserra Racing
High-performance, cost-efective, entry-level model
- Designed for everyone from competitive racers to beginners
- Assembled like a top-end model
- Can be combined with 4stroke engine and 2stroke air-cooled engine such as YAMAHA KT100
Independent.Pivot.Tecnology
- Adjustable caster/camber system
- Range of caster adjustment 18º
- Range of camber adjustment 2º
Direction slider
- Quick toe in/out adjust system
Asymmetric pedals & Split footrest
- Ø12mm accelerator, Ø14mm brake pedal for better power transfer
- Adjustable independent footrest
Following items not included
- Engine &engine accessories
- Tires
| Main tube | Ø28mm Cr-Mo special selected tube | |
| Wheel base | 1040mm | |

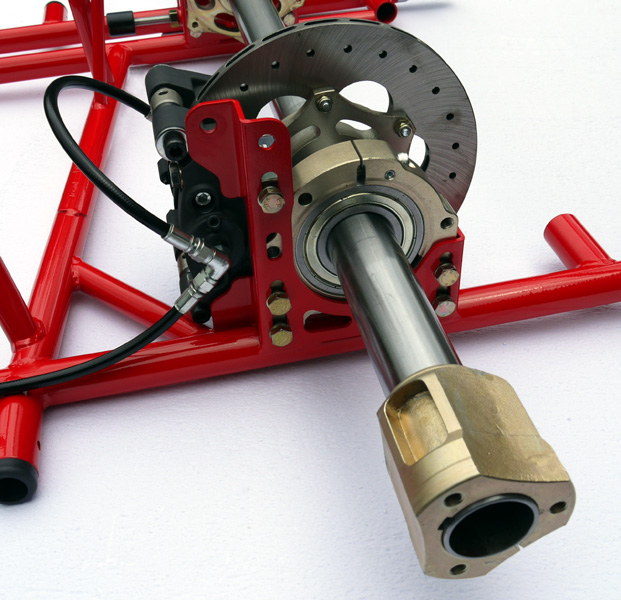

| Rear axle | Ø40 x 1020mm 3bearings with height adjustable system CNC machined magnesium alloy bearing & sprocket carrier |
|

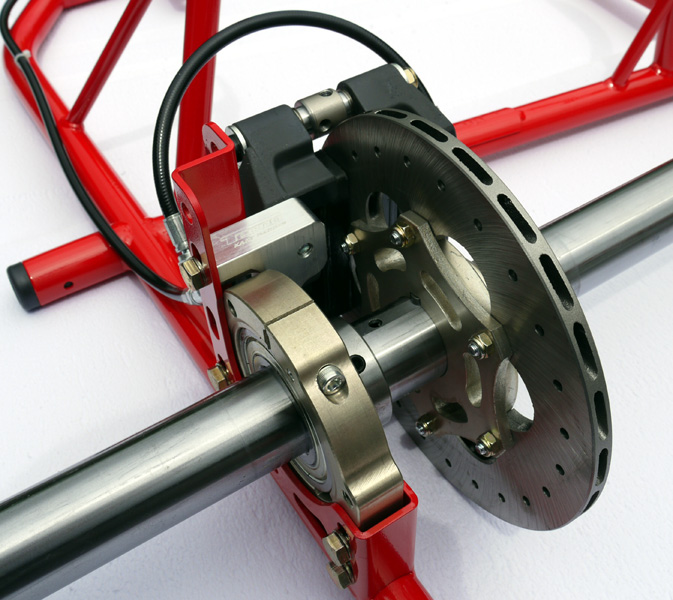

| Brake system | Rear - CIK-FIA homologated FT14-M hydraulic foot brake system Ø205x16mm ventilated disc rotor with CNC machined magnesium alloy carrier |
|
| Wheels | Front- 130mm magnesium alloy wheels Rear- 185mm magnesium alloy wheels |
|
| Hubs | Front- Ø17mm x75mm aluminium alloy hubs Rear- Ø40mm x 72mm magnesium alloy hubs |
|
| Body-work | TECNO JET II with sticker set | (option)TECNO JET with sticker set |
| Accessories | 8L fuel tank Angled magnesium alloy steering boss D-type chamois leather steering wheel "Split" foot rest Low exhaust support |
Specifications subject to change without notice.
| Tie rod | 245mm / 249mm / 260mm / 272mm |
| Rear axle | soft / medium / hard |
| Front wheel hub | 60mm / 75mm / 90mm / 105mm |
| Rear wheel hub | Ø40mm x 72mm / 97mm / 123mm |
| Frame color | red /black / gray |
| Body-work color | red |
